Soft Magnetic Alloy Wire
Your Trusted Source for Precision Alloy Manufacturing
Soft magnetic materials are alloys with high magnetic permeability, low coercivity, and minimal energy loss during magnetization and demagnetization cycles. These properties make them ideal for applications involving alternating or fluctuating magnetic fields, such as transformers, motors, and inductors.
Available grades: 1J06, 1J12, 1J17, 1J18, 1J22, 1J30, 1J36, 1J38, 1J46, 1J50, 1J51, 1J54, 1J76, 1J77, 1J79, 1J80, 1J85, 1J87
-

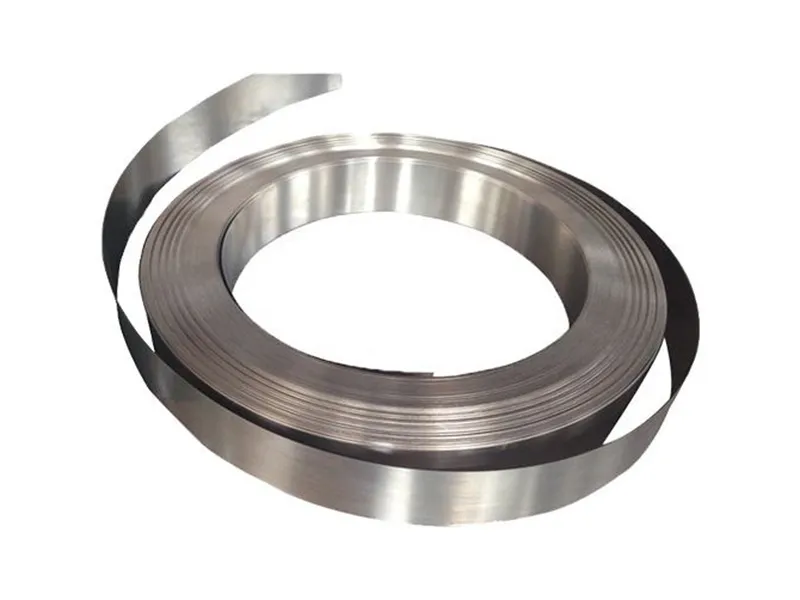

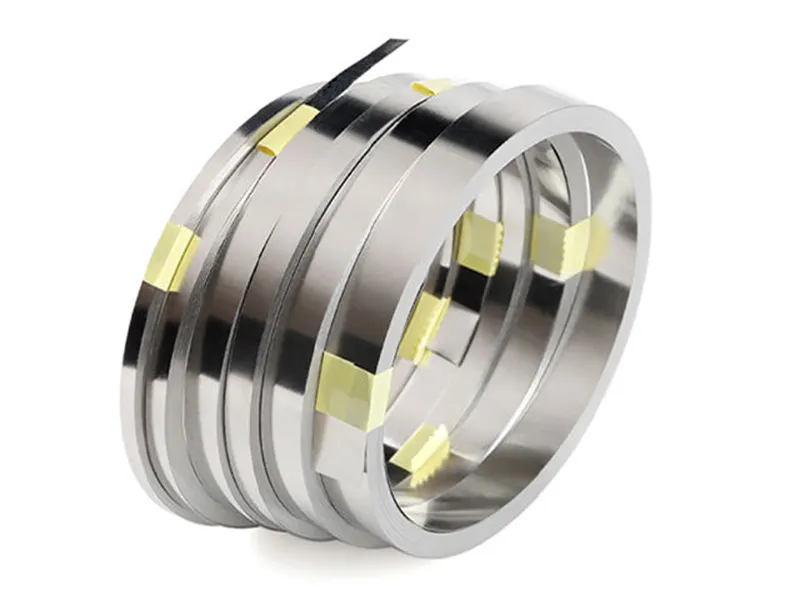

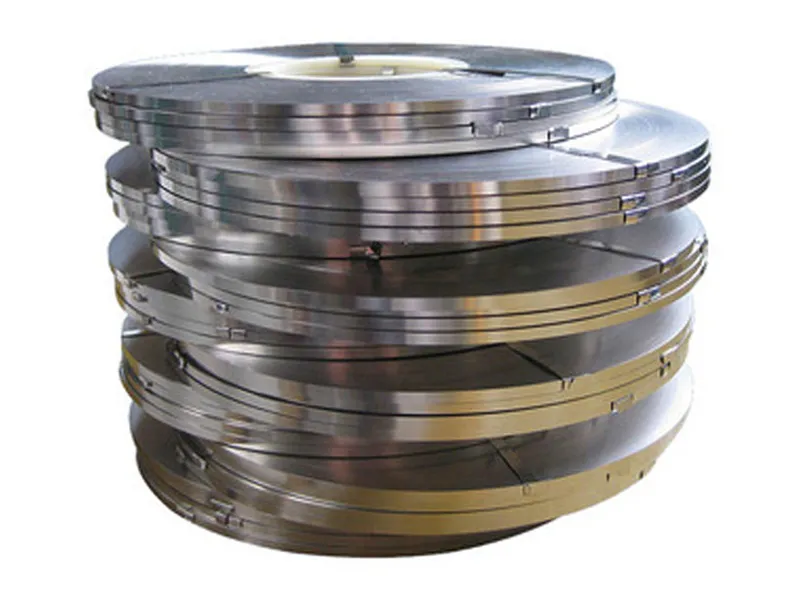

Strip
- Thickness: 0.02mm-2.0mm
- Width: 3mm-500mm
- Length: Coiled strip or cut-to-length (up to 5000 m)
-
Plate / Sheet
- Thickness: 0.3mm-10mm
- Width: 100mm-1000mm
- Length: 500mm-2000mm
-

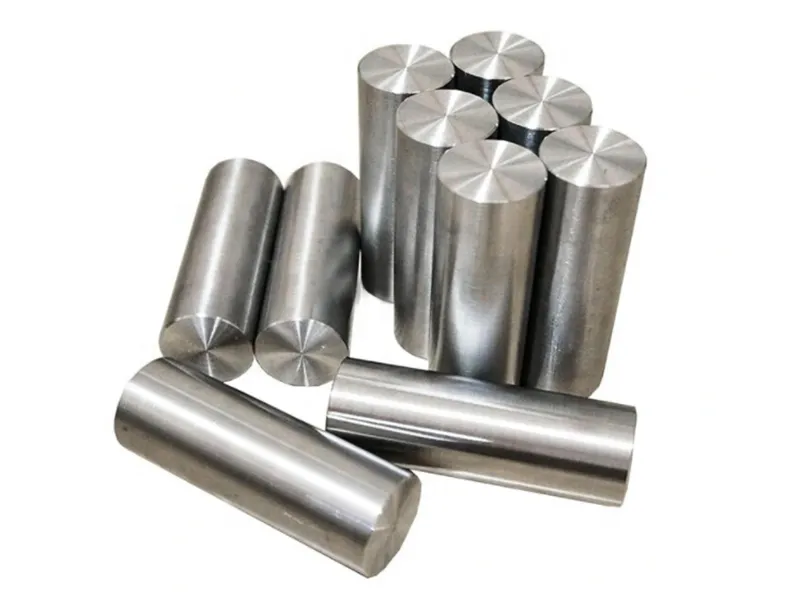

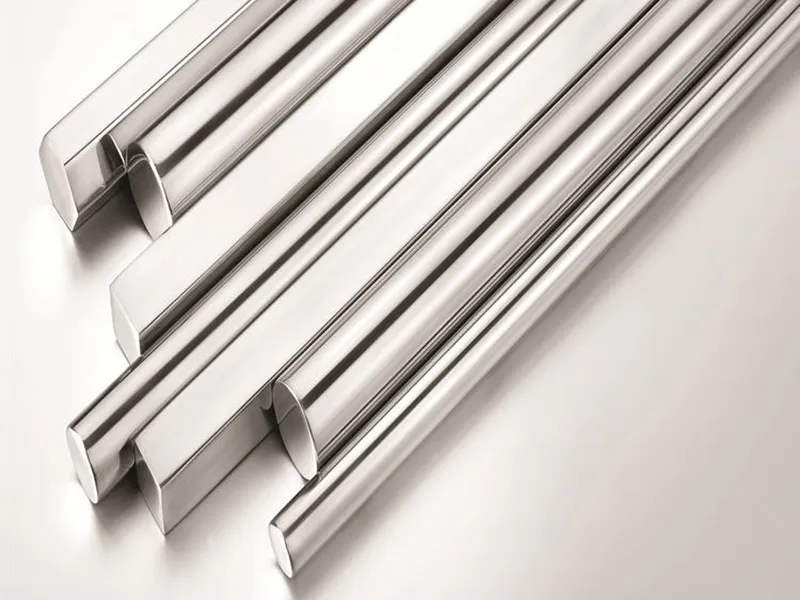

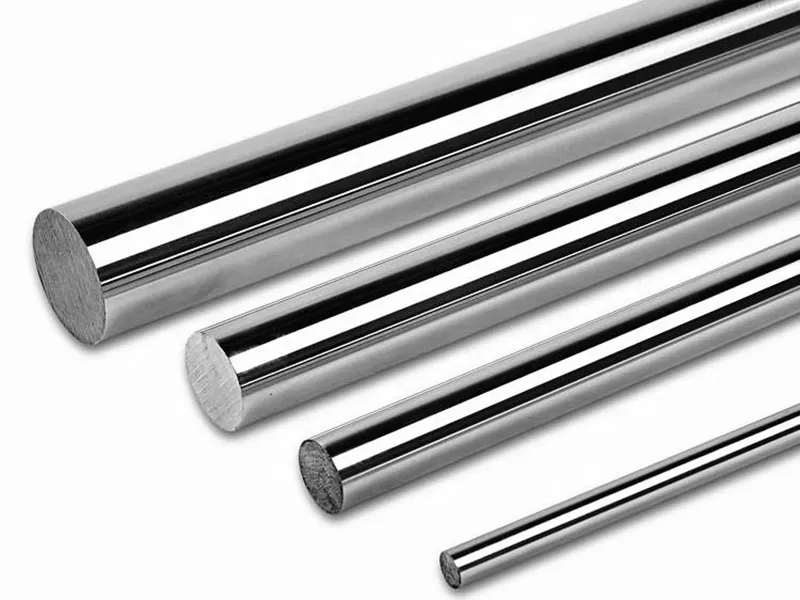

Rod
- Diameter: Ø5mm-Ø50mm
- Length: 100mm-2000mm。
-

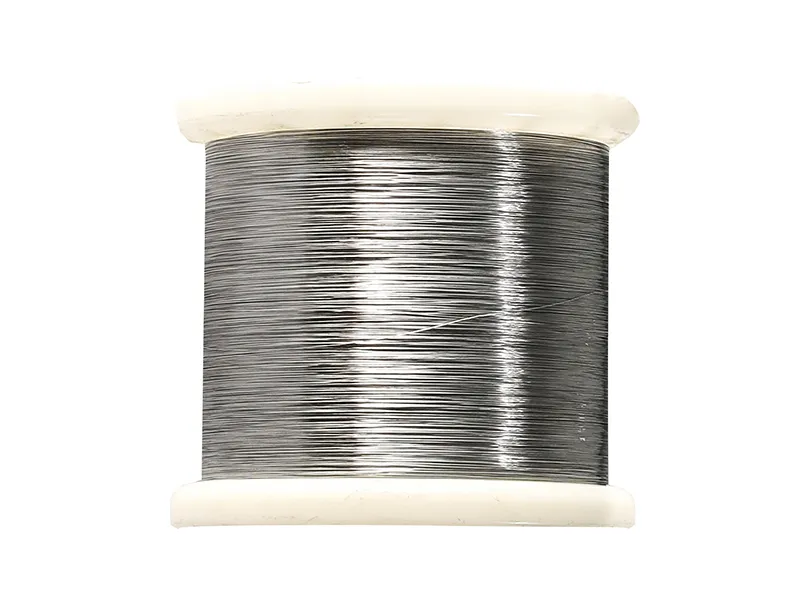

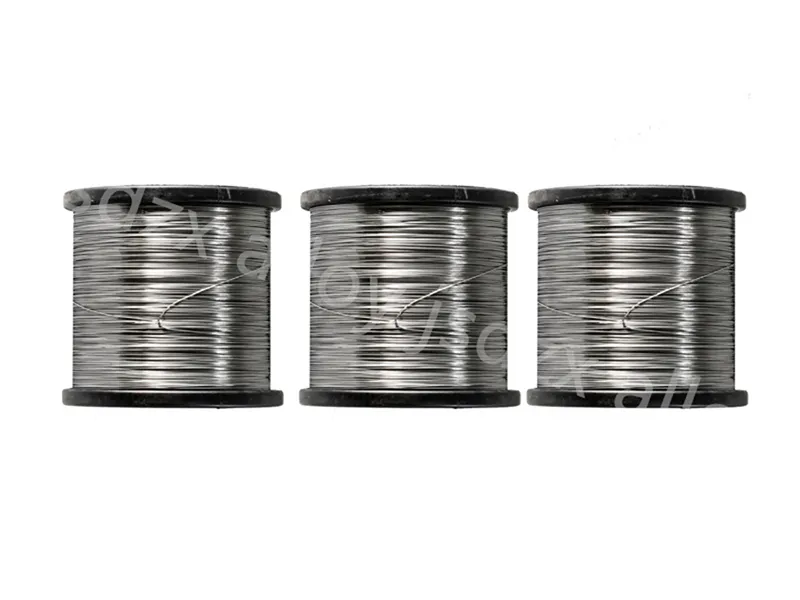

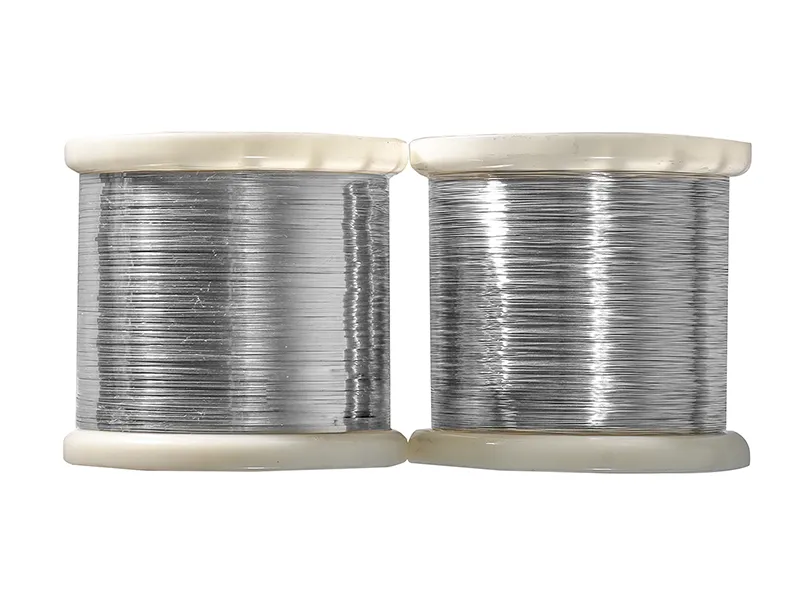

Wire
- Diameter: Ø0.02mm-Ø3mm
- Delivery Forms: Bright shiny surface or anodized surface, supplied in spools
Magnetic Properties
| Material | Nickel-Iron Alloy | Cobalt-Iron Alloy |
| Saturate Induction (Bs) | 0.8-1.6 T | 2.0-2.3 T |
| Initial Magnetic Permeability (μi) | 10,000-100,000 | 1,000-5,000 |
| Coercivity (Hc) | ≤2 A/m | ≤15 A/m |
| Hysteresis Loss (W/kg) | Very low | Medium |
Electrical Properties
| Electrical Resistivity | |
| Nickel-Iron Alloy | 50-60×10⁻⁶ Ω·cm |
Mechanical Properties
| Hardness | |
| Nickel-Iron Alloy | 150-200 HV |
| Density | |
| Nickel-Iron Alloy | 8.1g/cm³ |
| Cobalt-Iron Alloy | 8.3g/cm³ |
Chemical Composition
| Alloy Grades | Carbon (C) | Sulfur (S) | Phosphorus (P) | Manganese (Mn) | Silicon (Si) | Nickel (Ni) | Chromium (Cr) | Cobalt (Co) | Molybdenum (Mo) | Copper (Cu) | Aluminum (Al) | Niobium (Nb) | Iron (Fe) | Other Elements |
| Not greater than | ||||||||||||||
| 0.04 | 0.015 | 0.015 | ≤0.10 | ≤0.15 | - | - | - | - | - | 5.5-6.5 | - | Rest | - | |
| 0.03 | 0.015 | 0.015 | ≤0.10 | ≤0.15 | - | - | - | - | - | 11.6-12.4 | Rest | - | ||
| 0.03 | 0.02 | 0.02 | ≤0.60 | ≤0.20 | - | 15.5-16.5 | - | - | - | - | - | Rest | - | |
| 0.03 | 0.02 | 0.02 | 0.3-0.7 | ≤0.15 | 0.5-0.7 | 17-18.5 | - | - | - | - | - | Rest | Ti.0.3-0.7 | |
| 0.04 | 0.02 | 0.02 | ≤0.3 | ≤0.3 | ≤0.5 | - | 49-51 | - | ≤0.2 | - | - | Rest | V.0.8-1.8 | |
| 0.04 | 0.02 | 0.02 | ≤0.40 | ≤0.30 | 29.5-30.5 | - | - | - | - | - | - | Rest | - | |
| 0.03 | 0.02 | 0.02 | ≤0.60 | ≤0.20 | 35.0-37.0 | - | - | - | - | - | - | Rest | - | |
| 0.03 | 0.05 | 0.02 | 0.3-0.6 | 0.15-0.3 | 37.5-38.5 | 12.5-13.5 | - | - | - | - | - | Rest | - | |
| 0.03 | 0.02 | 0.02 | 0.6-1.1 | 0.15-0.3 | 45.0-46.5 | - | - | - | ≤0.2 | - | - | Rest | - | |
| 0.03 | 0.02 | 0.02 | 0.3-0.6 | 0.15-0.3 | 49-50.5 | - | - | - | ≤0.2 | - | - | Rest | - | |
| 0.03 | 0.02 | 0.02 | 03-0.6 | 0.15-0.3 | 49-50.5 | - | - | - | ≤0.2 | - | - | Rest | - | |
| 0.03 | 0.02 | 0.02 | 0.3-0.6 | 1.1-1.4 | 49.5-51 | 3.8-42 | - | - | ≤0.2 | - | - | Rest | - | |
| 0.03 | 0.02 | 0.02 | 0.3-0.6 | 0.15-0.3 | 75.0-76.5 | 1.8-22 | - | - | 4.8-5.2 | - | - | Rest | - | |
| 0.03 | 0.02 | 0.02 | 0.3-0.6 | 0.15-0.3 | 75.5-78 | - | - | 3.9-4.5 | 4.8-6.0 | - | - | Rest | - | |
| 0.03 | 0.02 | 0.02 | 0.6-1.10 | 0.3-0.5 | 78.5-80.0 | - | - | 3.8-4.1 | ≤0.2 | - | - | Rest | - | |
| 0.03 | 0.02 | 0.02 | 0.6-1.10 | 1.1-1.5 | 79.0-81.5 | 2.6-3.0 | - | - | ≤0.2 | - | - | Rest | - | |
| 0.03 | 0.02 | 0.02 | 0.3-0.60 | 0.15-0.3 | 79.0-81.0 | - | - | 4.8-5.2 | ≤0.2 | - | - | Rest | - | |
| 0.03 | 0.02 | 0.02 | 03-0.6 | ≤0.3 | 78.5-80.5 | - | - | 1.6-22 | - | - | 6.5-7.5 | Rest | - | |
Features
- Easily magnetized and demagnetized
- Requires minimal energy to reverse magnetization
- Minimal energy loss due to hysteresis and eddy currents
- High saturation magnetic flux density, ensuring effective magnetic performance
Applications
- Power generation & distribution: Transformer cores, stators, and rotors in generators
- Consumer electronics: Magnetic shielding, inductors, and small transformers
- Automotive: Electric vehicle motors, sensors, and inductive charging systems
- Medical: MRI systems and other medical imaging devices
- Aerospace: High-performance motors and actuators
Packaging
